Tight Fit, Zero Leaks!

“Compact size, easy to mount, recessed mounting holes, good spacing on ports, variable port sizes, doesn't leak. Would buy again!” - Jaycee

Why Get Our Pneumatic Manifold Air Distribution Block?

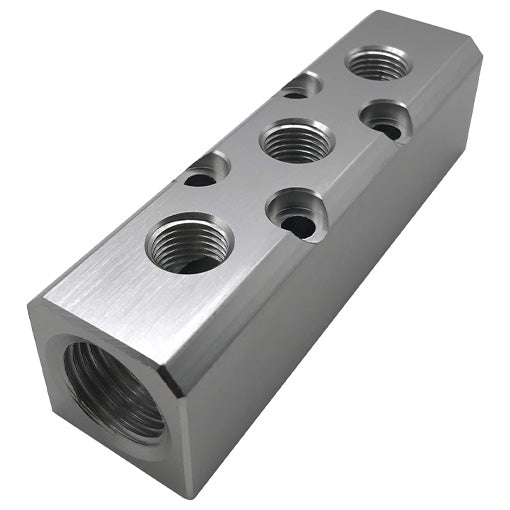

✅Durable Aluminum Build: Running multiple tools from a single line often leads to tangled hoses, time-wasting switches, and unreliable fittings that leak or crack under pressure. Built from solid aluminum alloy, this manifold resists corrosion, handles high-pressure use, and stays tough in demanding environments making it a reliable choice for clean, efficient air distribution.

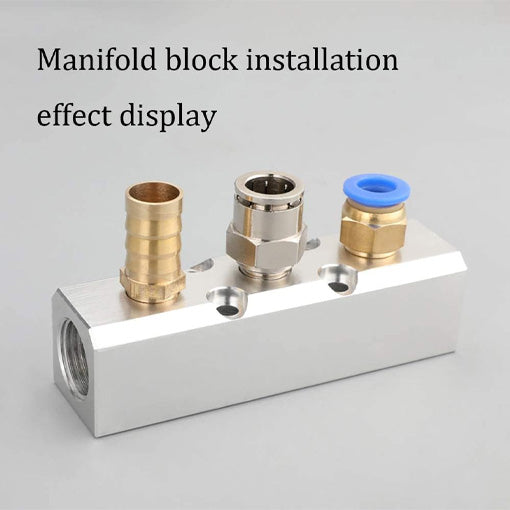

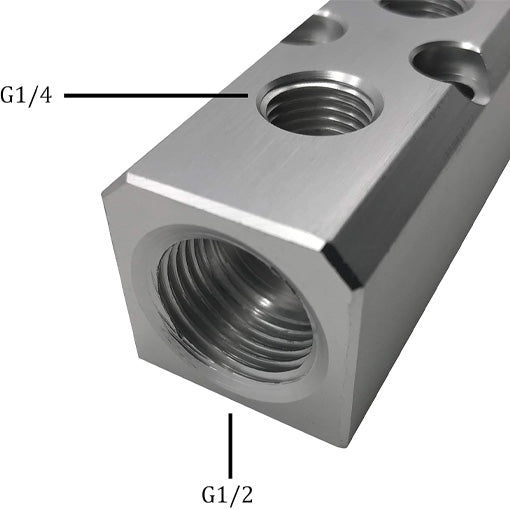

✅Efficient Multi-Tool Output: Equipped with three G1/4-inch outlets and two G1/2-inch inlets, it lets you power several tools at once while giving you flexible install options top-feed or side-feed for a cleaner, more efficient workspace.

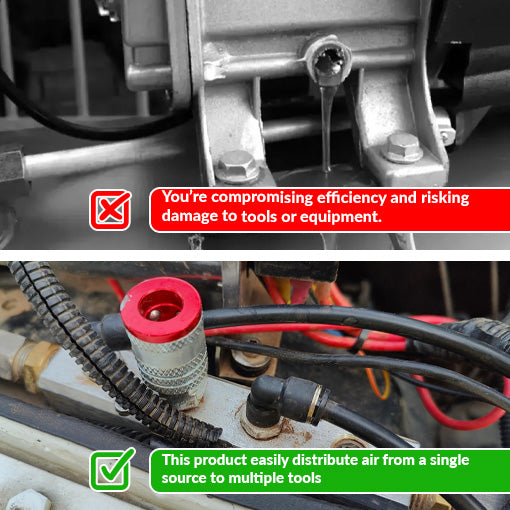

✅Versatile Branch Connector: Whether used as a splitter or a terminal point in pneumatic systems, this manifold helps streamline air distribution, improve workflow, and reduce hose clutter in both workshop and industrial setups.

📓FREQUENTLY ASKED QUESTIONS

Q: What tools or systems is this manifold compatible with?

A: This manifold is designed for use with air compressors or storage gas equipment. It can be used as a branch outlet or as supporting parts of machine equipment, typically installed in the gas terminal branch interface or engineering wiring pipeline branch.

Q: Can it be used with different types of pneumatic tools?

A: Yes, this tool can be used with different types of pneumatic tools, as it is designed to distribute pneumatic power to multiple locations from a single source.

Q: Can it handle high pressure?

A: Yes, this Pneumatic Manifold Air Distribution Block is designed to handle high pressure, as indicated by its high pressure resistance feature.

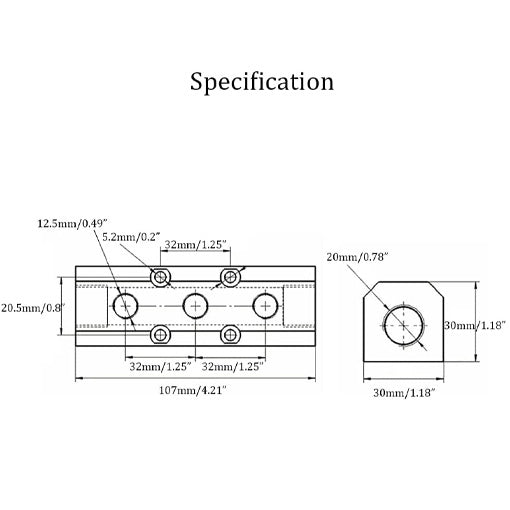

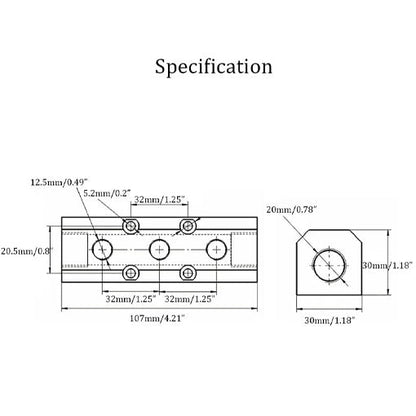

⚙️ Specifications:

• Color:  Silver

• Material: Aluminum

• 3 Way 5 Port

• Item Weight:   1 Pounds

• Inlet Port Diameter: G1/2 (20mm/0.78”)

• Outlet Port Diameter: G1/4 (12.5mm/0.49”)

• Total Length: 107mm/4.21”

• Width: 30mm/1.18”

• Height: 30mm/1.18”

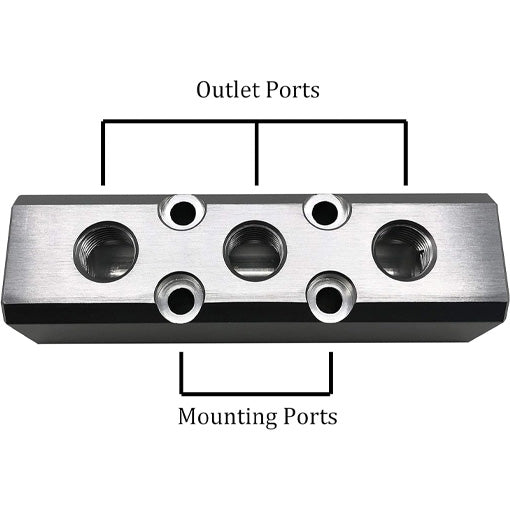

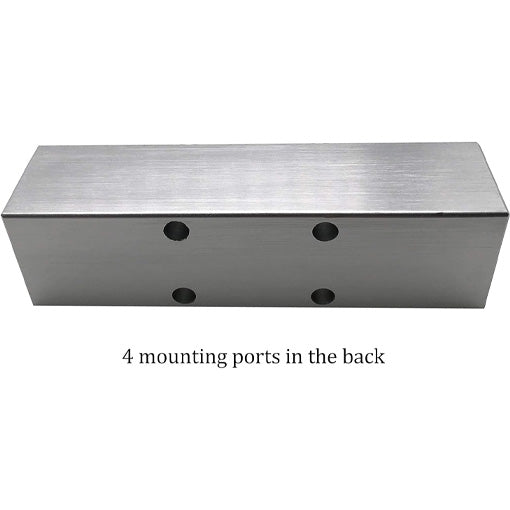

• Mounting Port Diameter: 5.2mm/0.2”

• Outlet Port Center Distance: 32mm/1.25”

• Mounting Port Center Distance: 20.5mm/0.8”

• Connector Type: NPT

• Thread Size: 0.25 inch

• Thread Type: NPT

• Package Inclusion:

• 2 x G1/2" Inlet Ports, 3 x G1/4" Outlet Ports

• 4 Way 6 Port

• Item Weight:  1 Pounds

• Inlet Port Diameter: G1/2

• Outlet Port Diameter: G1/4

• Outlet Port Center Distance: 32mm

• Mounting Port Center Distance: 20.5mm

• Mounting Port Diameter: 5.2mm

• Total Length: 138mm

• Connector Type: Threaded

• Thread Size: Inlet: G1/2, Outlet: G1/4

• Thread Type: GHT

• Package Inclusion:

• 2 x G1/2" Inlet Ports, 4 x G1/4" Outlet Ports

• 7 Way 9 Port

• Item Weight:  16 ounces

• Inlet Port Diameter: G1/2

• Outlet Port Diameter: G1/4

• Outlet Port Center Distance: 32mm

• Mounting Port Center Distance: 20.5mm

• Mounting Port Diameter: 5.2mm

• Total Length: 234mm

• Connector Type: G1/4

• Thread Size: 0.25 inch

• Thread Type: BSP

• Package Inclusion:

• 2 x G1/2" Inlet Ports, 7 x G1/4" Outlet Ports
